PLC Splitters · LGX Cassette

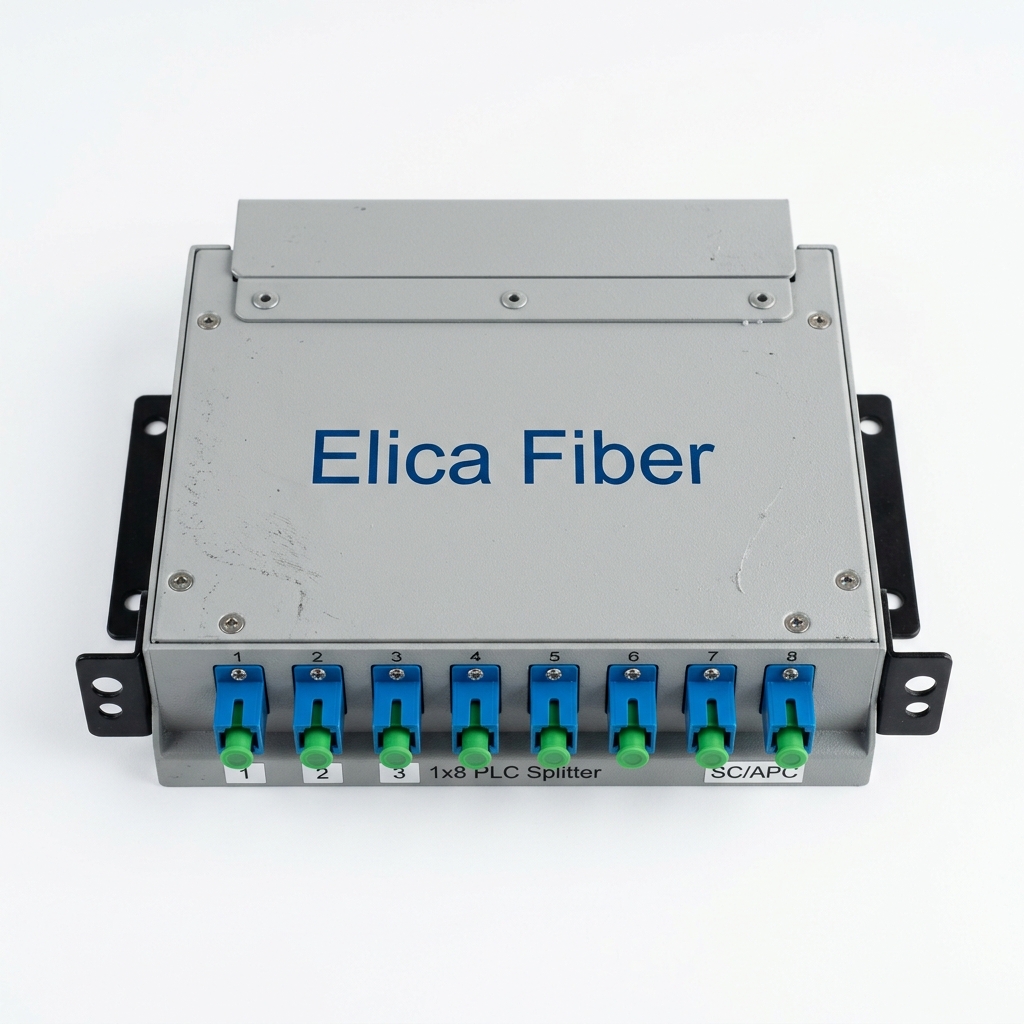

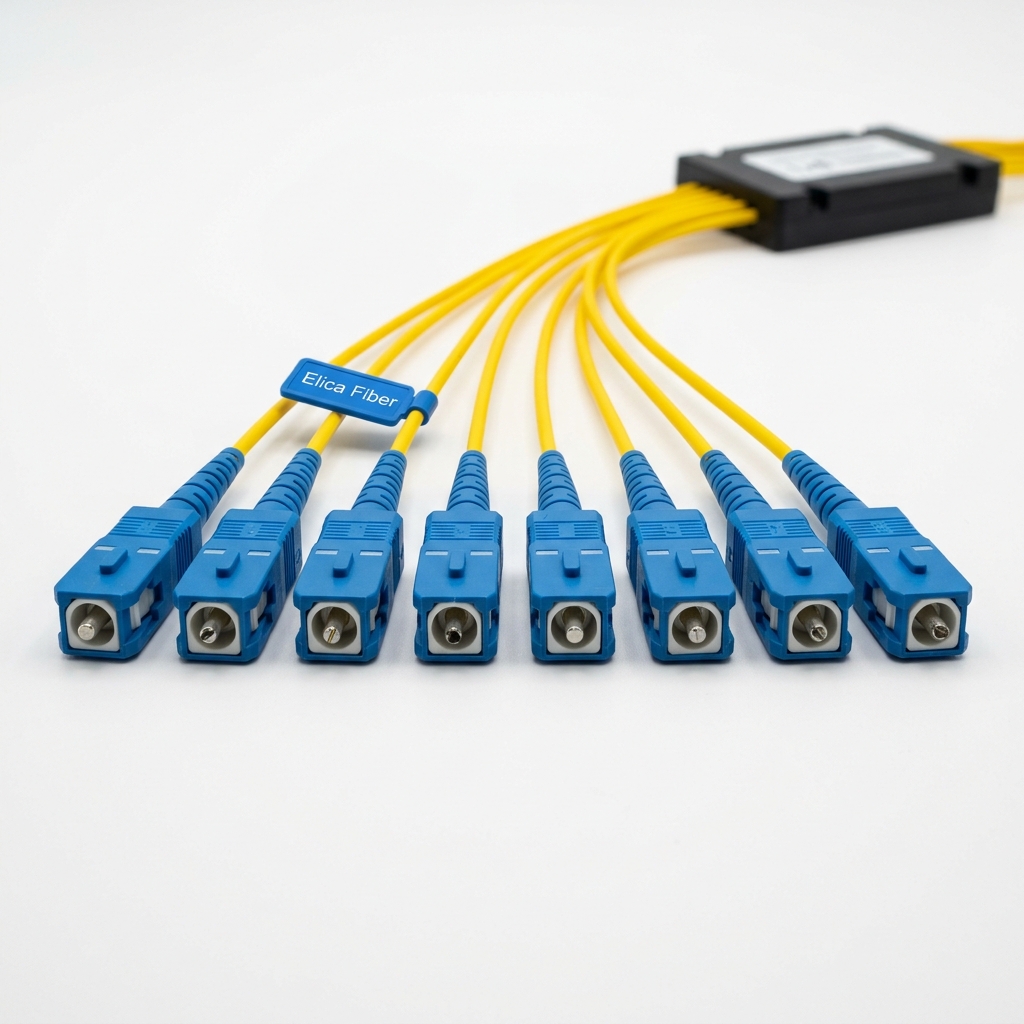

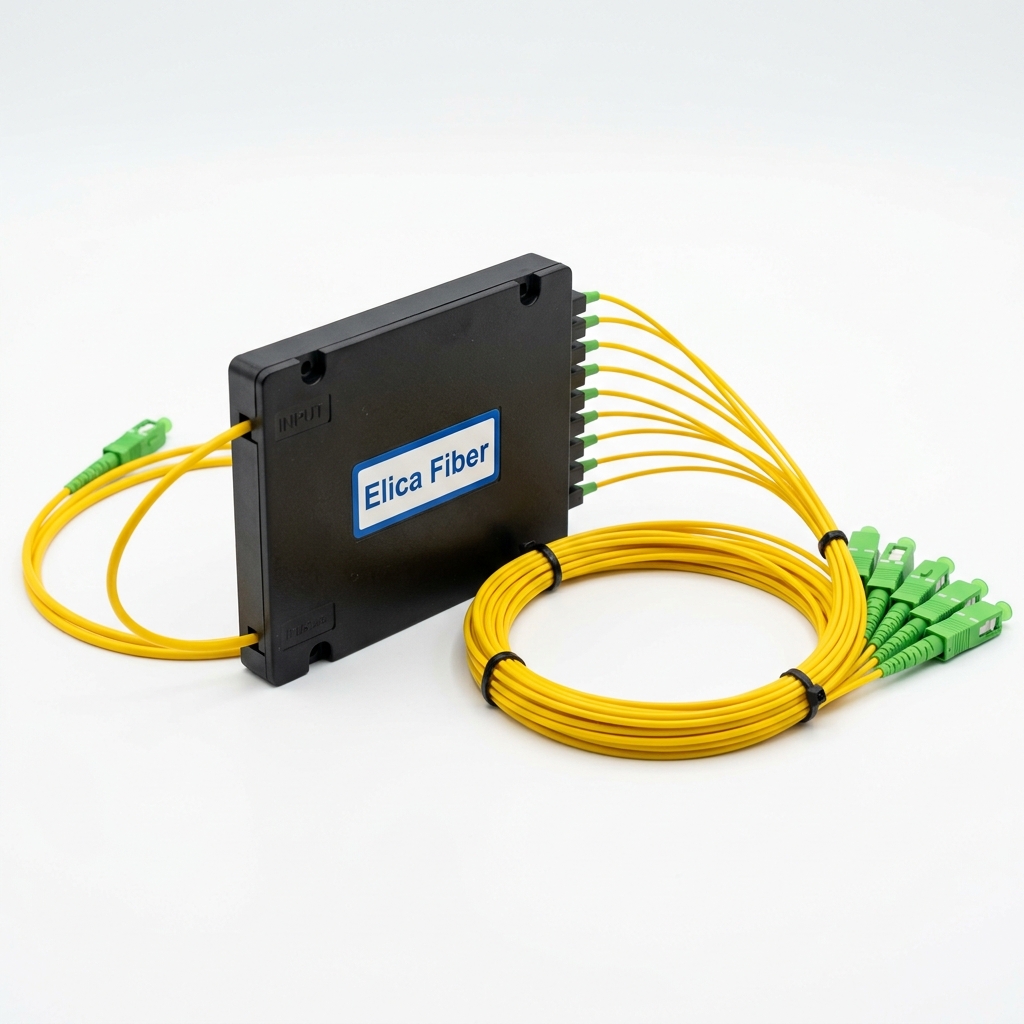

1:8 PLC LGX APC
The 1:8 PLC LGX APC is a Planar Lightwave Circuit (PLC) optical splitter engineered for precise, low-loss signal distribution across FTTH, FTTx and PON access networks. Packaged for fast deployment in distribution frames, closures and LGX panels, it delivers uniform splitting across the full single-mode operating window.
Key Features
Built to Perform
Low insertion loss with high port-to-port uniformity
Wide single-mode operating wavelength window
Compact package for closures, ODFs and LGX panels
Excellent environmental and mechanical stability
RoHS compliant construction
Applications
Where It Works
Technical Specifications
Specification Sheet
Split Configuration
1:8
Operating Wavelength
1260 – 1650 nm (typical)
Insertion Loss
Available on request
Return Loss
Available on request
Operating Temperature
-40 °C to +85 °C (typical)
Compliance
RoHS
Final values are confirmed per product datasheet — contact our sales desk for the full document.
Available Variants
Options & Formats
SC/APC, SC/UPC and unterminated options
LGX cassette, ABS box and bare-fibre packages
Custom split ratios on request
Product Datasheet
Full technical document — sent on request
